FLI Scientific Cameras | Low-Noise Imaging for Astronomy & Life Sciences

Pick a camera family to see the sensors it supports, then open the family page for models and specs.

CMOS

Aurora

Cooled CMOS with Sony high-sensitivity, low-noise IMX back-illuminated sensors from 9 to 151 megapixels. Built for remote installations; air cooling standard, liquid circulation ready.

Sensors: IMX411, IMX461, IMX455, IMX571, IMX533
Up to 66.7 mm diagonal (AR411)
Life science, high resolution, space situational awareness

AR411 AR461 AR455 AR571 AR533

Aurora family

CMOS

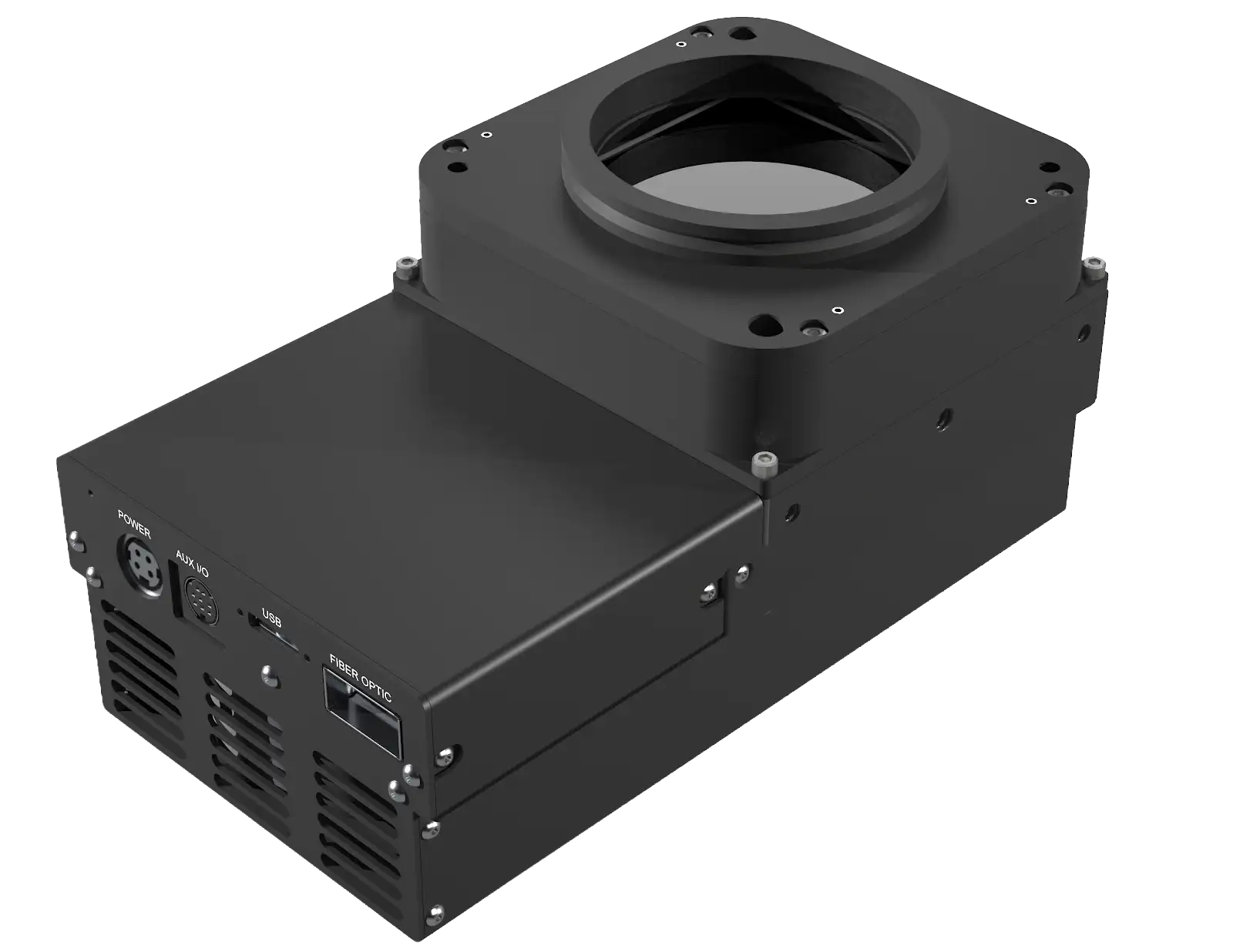

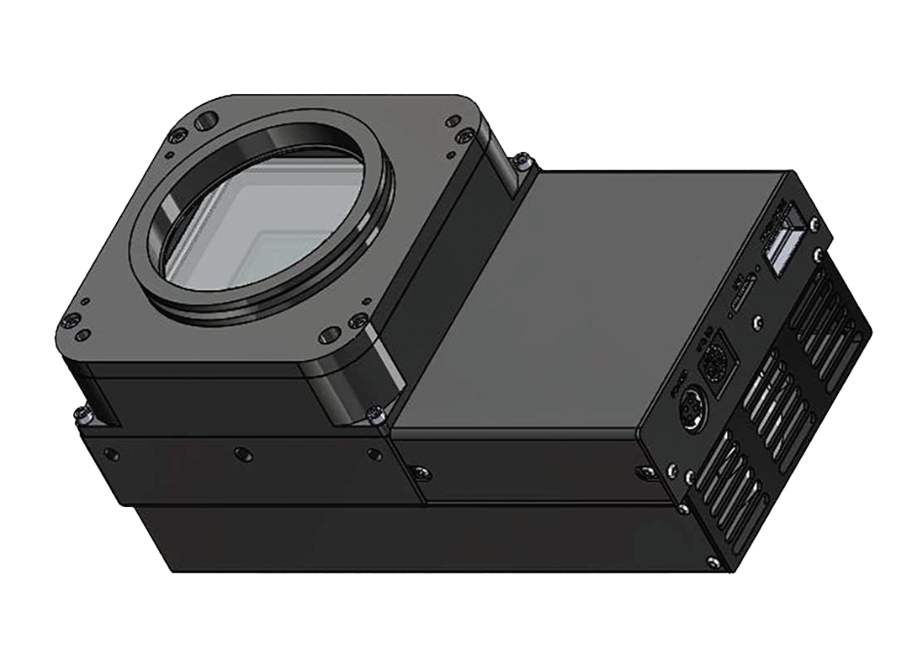

Revelation

Same electronics and Sony IMX sensors as Aurora, in a thin profile for tight front-to-back space (under 55 mm). Optional air cooling, liquid circulation, or mounting to your housing as a heatsink.

Sensors: IMX411, IMX461, IMX455, IMX571, IMX533
Thin OEM form factor for life-science integration
Evolution of the discontinued Hyperion CCD line

RV411 RV461 RV455 RV571 RV533

Revelation family

CMOS

Kepler

Large-format GPixel GSense sCMOS, front- and back-illuminated. Larger pixels for high sensitivity and low noise at high throughput. User-replaceable shutter, fans, and digital board for remote installs.

Sensors: GSense6060, GSense4040, GSense400 (FI & BI)
Also CCD230-84 on DC23084
Space Domain Awareness, wide field of view

KL6060 BI KL4040 BI KL400 BI DC23084

Kepler family

CCD

MicroLine

Smaller and lighter than ProLine, with cooling that stays within a few degrees of its larger sibling—or meets/exceeds it with the optional copper heatsink. Shorter back focal distance; dual/quad readout on some sensors.

Sensors: CCD230-42, CCD42-40, CCD47-10, CCD47-20
Compact, light-weight scientific CCD

ML23042 ML4240 ML4710 ML4720

MicroLine family

CCD

ProLine

Two power and two USB connections for FLI accessories—camera and filter wheel from a single power/USB cable. Independent high/low-rate ADCs; sealed chambers for harsh environments.

Sensors: CCD230-42, CCD42-40
Direct filter-wheel connection; long exposures

PL23042 PL4240

ProLine family

SWIR

Coming soon

SWIR cameras

Short-wave infrared cameras from FLI, designed and manufactured in the USA. Join the waitlist for launch details.

New SWIR series — details at launch

SWIR waitlist

Looking for Hyperion? That CCD line is discontinued; Revelation is the current thin-profile path for new OEM designs.

Sensor	Type	Pixels	Pixel	Array (mm)	Diag	Full well	Cameras
GSense6060 FI	CMOS	6144×6144	10 µm	61.4×61.4	86.9 mm	128k	KL6060 FI
GSense6060 BI	CMOS	6144×6144	10 µm	61.4×61.4	86.9 mm	95k	KL6060 BI
GSense4040 FI	CMOS	4096×4096	9 µm	36.9×36.9	52.1 mm	70k	KL4040 FI
GSense4040 BI	CMOS	4096×4096	9 µm	36.9×36.9	52.1 mm	39k	KL4040 BI
GSense400 FI	CMOS	2048×2048	11 µm	22.5×22.5	31.9 mm	120k	KL400 FI
GSense400 BI	CMOS	2048×2048	11 µm	22.5×22.5	31.9 mm	90k	KL400 BI
IMX411	CMOS	14192×10640	3.76 µm	53.4×40	66.7 mm	50k	AR411 · RV411
IMX461	CMOS	11656×8742	3.76 µm	43.8×32.9	54.8 mm	50k	AR461 · RV461
IMX455	CMOS	9568×6380	3.76 µm	36×24	43.2 mm	50k	AR455 · RV455
IMX571	CMOS	6244×4168	3.76 µm	23.5×15.7	28.2 mm	50k	AR571 · RV571
IMX533	CMOS	3003×3003	3.76 µm	11.3×11.3	16.0 mm	50k	AR533 · RV533
CCD230-84	CCD	4096×4096	15 µm	61.4×61.4	86.8 mm	150k	DC23084
CCD230-42	CCD	2048×2048	15 µm	30.7×30.7	43.4 mm	150k	ML23042 · PL23042
CCD42-40	CCD	2048×2048	13.5 µm	27.6×27.6	39.1 mm	100k	ML4240 · PL4240
CCD47-10	CCD	1024×1024	13 µm	13.3×13.3	18.8 mm	100k	ML4710
CCD47-20	CCD	1024×1024	13 µm	13.3×13.3	18.8 mm	100k	ML4720
